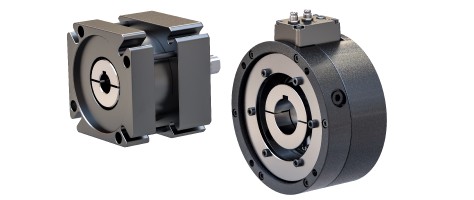

Indexer Brakes

The I-300 brake is designed for zero backlash holding and emergency stopping, making it ideal for indexers and positioning systems. The spring-engaged, air-released, patented braking element locks and holds the shaft in position without any displacement or reversing of the load. It is flange- or shaft-mounted and has a keyless compression bushing shaft connection for easy installation and IP67-rated when flange-mounted. High torque and short response time ensure the shortest possible stopping distance and precise holding. Brakes can be stacked for additional holding power or redundant braking.


Product     Description   Bore Size   Minimum Release Pressure

I*300,65MM BORE

  65 mm   4.1 Bar
965502   I*300,65MM BORE,KEYED   65 mm   4.1 Bar
