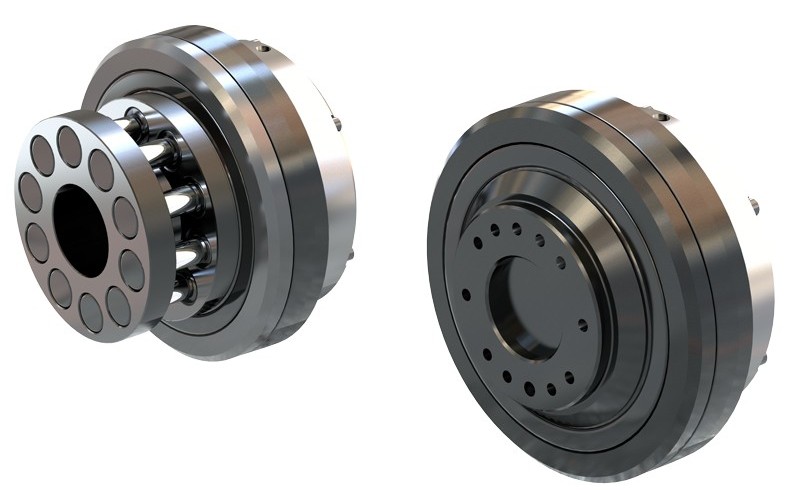

Reductorul armonic de la Nexen (HG), o revoluție în sine, reprezintă combinația perfectă între dimensiune și precizie. Folosind reductorul armonic cu pinionul RPS integrat obțineți o soluție de transmisie cu joc zero de la motor la sarcina antrenată. Lungimea cu aproximativ 70% mai mică față de reductoarele standard va fi pe placul proiectanților de mașini industriale care vor aprecia posibilitățile deschise de economia de spațiu creată utilizând acest produs.



Avantajul reductorului armonic Nexen



Reductorul armonic NEXEN pune la dispoziție o soluție de acționare precisă care pune capăt provocărilor ridicate de metodele existente de angrenare. Această nouă tehnologie elimină problemele cauzate de joc care au creat probleme industriei de transmisii controlate ale mișcării, prin aceea că asigură precizie sigură chiar atunci când sunt necesare mișcări complicate.



reductor armonic vs clasic

In the tradition of Nexen's entire line of precision motion control products, the Harmonic Gearhead sets new standards with these great features:

• Zero Backlash• High Positional Accuracy & Repeatability• Quiet Operation• Large, Rugged Cross-Roller Output Bearing• Compact

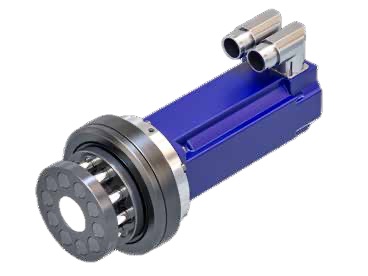

Harmonic Gearhead with PinionSave space by taking advantage of Nexen’s Harmonic Gearhead with Pinion (HGP). In this model, the RPS pinion comes fully integrated into the gearhead, creating the only drive solution that maintains zero backlash from the driving motor shaft through to the driven load for both linear and rotary motion.





download1




HG 190X190X72 1

Reductor armonic HG cu flanşă ISO9409

Harmonic Gearheads offer true zero backlash, high reduction ratios of 50/80/100/120:1, and high load capacity in a very compact package. They utilize the best cross roller bearing technology for the highest rigidity and load capacities. This link will take you to the ISO9409 flange mount versions.






Nr. articol   Model   Descriere
969000    HG17    HG17,ISO,50:1,9.00,31.00,40.00
969001   HG17    HG17,ISO,80:1,9.00,31.00,40.00
969002   HG17   HG17,ISO,100:1,9.00,31.00,40.00
969003   HG17   HG17,ISO,120:1,9.00,31.00,40.00
969040   HG25   HG25,ISO,50:1,14.00,36.50,60.00
969041   HG25   HG25,ISO,80:1,14.00,36.50,60.00
969042   HG25   HG25,ISO,100:1,14.00,36.50,60.00
969043   HG25   HG25,ISO,120:1,14.00,36.50,60.00




HGP 190X190X72

Reductor armonic HGP cu pinion

Harmonic Gearheads offer true zero backlash, high reduction ratios of 50/80/100/120:1, and high load capacity in a very compact package. They utilize the best cross roller bearing technology for the highest rigidity and load capacities. This link will take you to the HGP Harmonic Gearheads with an integrated RPS pinion. The integrated pinion models offer the ultimate in RPS system performance and simplify installation.




Nr. articol   Model   Descriere
969010   HGP17    HGP17,RPS16P-B,50:1,9.00,31.00 ,40.00
969011   HGP17   HGP17,RPS16-B,80:1,9.00,31.00 ,40.00
969012   HGP17   HGP17,RPS16P-B,100:1,9.00,31.0 0,40.00
969013   HGP17   HGP17,RPS16P-B,120:1,9.00,31.0 0,40.00
969050   HGP25   HGP25,RPS20P-B,50:1,14.00,36.50,60.00
969051   HGP25   HGP25,RPS20P-B,80:1,14.00,36.50,60.00
969052   HGP25   HGP25,RPS20P-B,100:1,14.00,36.50,60.00
969053   HGP25   HGP25,RPS20P-B,120:1,14.00,36.50,60.00
